🎧 What is it?

This is a fully working Internet Radio based on the ESP32-S3 microcontroller. It allows you to stream thousands of Internet radio stations from around the world — with no subscription fees, no licenses, and often fewer ads than traditional FM stations.

The device is battery-powered, portable, and includes:

Touchscreen
Built-in DAC and 3W Amplifier
5W Speaker

You can change stations and control the volume directly on the device, or remotely using the built-in web-based radio manager from a PC, Mac, or mobile phone.

Stations are accessed via online URLs. The radio can store up to 1000 favorites, and there are many free websites listing these URLs (see documentation).

🔧 Versions Available

Fully Assembled Bluetooth Version Ready to use out of the box Including Bluetooth Transmitter for connecting to Bluetooth Speakers, headphones or earbuds. Just add a battery or power via USB-C, connect to Wi-Fi, and enjoy.

Huge thanks to PCBWay for sponsoring this project! The whole process was smooth and impressively fast. Uploading my design files was straightforward, and PCBWay’s instant quoting system made it easy to fine-tune specs without any confusion.

I’m genuinely impressed by the quality — the boards turned out exactly as I envisioned, with crisp silkscreen, precise drill alignment, and professional finish.

Fully Assembled Version Ready to use out of the box. Just add a battery or power via USB-C, connect to Wi-Fi, and enjoy.
Kit Version Includes all components for self-assembly. Requires Solderin Iron, basic soldering skills and a hot glue gun. Perfect as a fun and educational activity to build with children.

💡 What Makes It Special?

Color Touchscreen Display – Intuitive and vivid. Tap to scroll or select stations.
Web-Based Management System – Manage stations and features from any device on the same network.
User-Friendly Interface – Simple, responsive UI for seamless station browsing and playback.
ESP32-S3 Microcontroller – Reliable and Wi-Fi enabled, powers the system.
Compact Design – Small enough to fit in the palm of your hand or blend into any room.

📦 What’s Included (Kit & Assembled Versions)

Microcontroller + LCD: 1x LilyGo T-Display S3 Touch
Amplifier + DAC: 1x MAX98357A I2S 3W Class D Module
Speaker: 1x 5W 4Ω 40mm
On/Off Push Button: 1x 12mm push button (PBW-12BPW-W)
Wi-Fi Antenna: U.FL (IPEX/IPX) connector antenna
3D-Printed Enclosure: Offered in various colors
Set of Wires: For battery, speaker, and switch connections

⚠️ Important Notes

Battery not included (due to shipping rules). The radio can also operate using only the USB-C charging port, without a battery installed.
Soldering Iron and Hot glue gun are required for assembling the kit (not included).
This is a DIY product intended for users comfortable with soldering and electronics assembly.
Firmware Compatibility: Only works with LilyGo T-Display S3 Touch. Firmware is provided as a BIN file (source code not shared).
Language support: English, Greek, Latin, Cyrillic, and Hebrew.
Photos may vary: PCB colors or module brands may differ slightly.
Streaming Info: Supports up to 320Kbit/s streams. HLS/DASH/FLAC formats not supported (e.g., BBC streams)
Requires a strong Wi-Fi signal for smooth playback

🔗 References & Tools

Radio Manager WebUI
Radio Display Control
ESP32 Flash Tool: https://www.espressif.com/en/support/download/other-tools
Tested Browsers: Google Chrome

Modern Designs

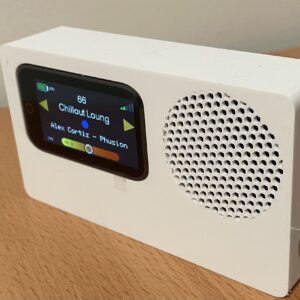

Compact Internet Radio with Touch Screen and WebUi
